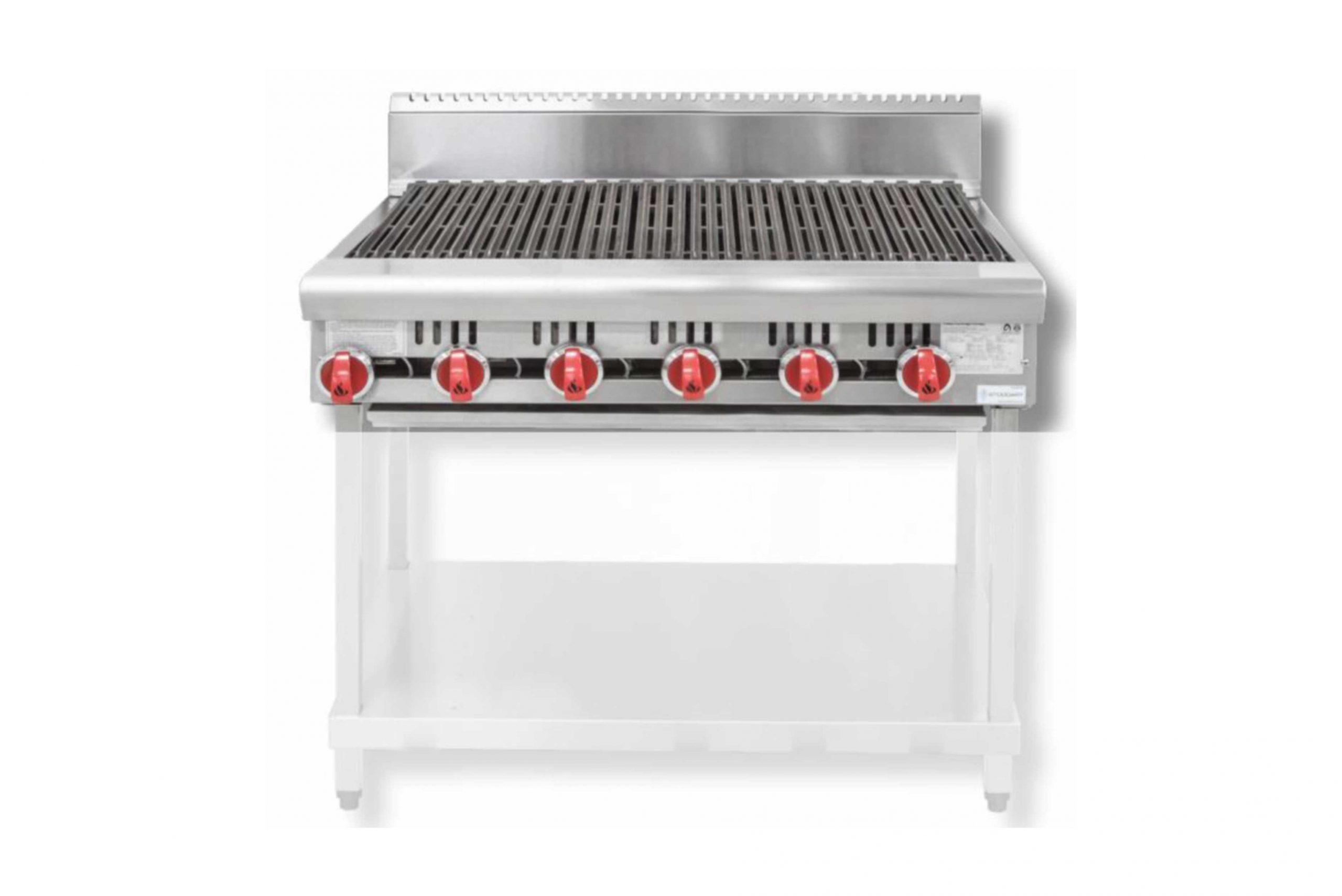

American Range Char Grill – AARRB.36
| Weight | 129 kg |
|---|---|
| Dimension |
Description
Heavy duty radiants for optimum heat distribution to cast iron grates
Radiants are individually removable for easy cleaning
Heavy duty cast top grates are angled to control flare-up
Reversible for flexibility of cooking different proteins
14 gauge all welded heavy duty reinforced firebox
Stainless steel polished front and trim for easy cleaning, with fully insulated double layered steel chassis
Individually controlled stainless steel burners placed every 140mm, providing maximum output, flexibility and low maintenance
Removable full width drip pan under char grill
Char Grill burner – Manually lit with pilot
Simple – low maintenance
PRODUCT SPECIFICATIONS
Dimensions (W x D x H) : 914 x 828 x 437 (1137)*
Total Weight : 129 Kg
Char Grill : 914mm wide 96MJ/Hr Char Grill
Minimum Supply Pressure : (NG)1.13 kPa | (ULPG)2.75 kPa
Operating Pressure : (NG)1.0 kPa | (ULPG)2.49 kPa
Total Gas Supply : (NG)96MJ/Hr | (ULPG)90MJ/Hr
