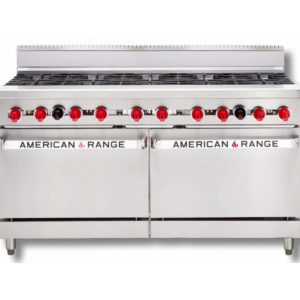

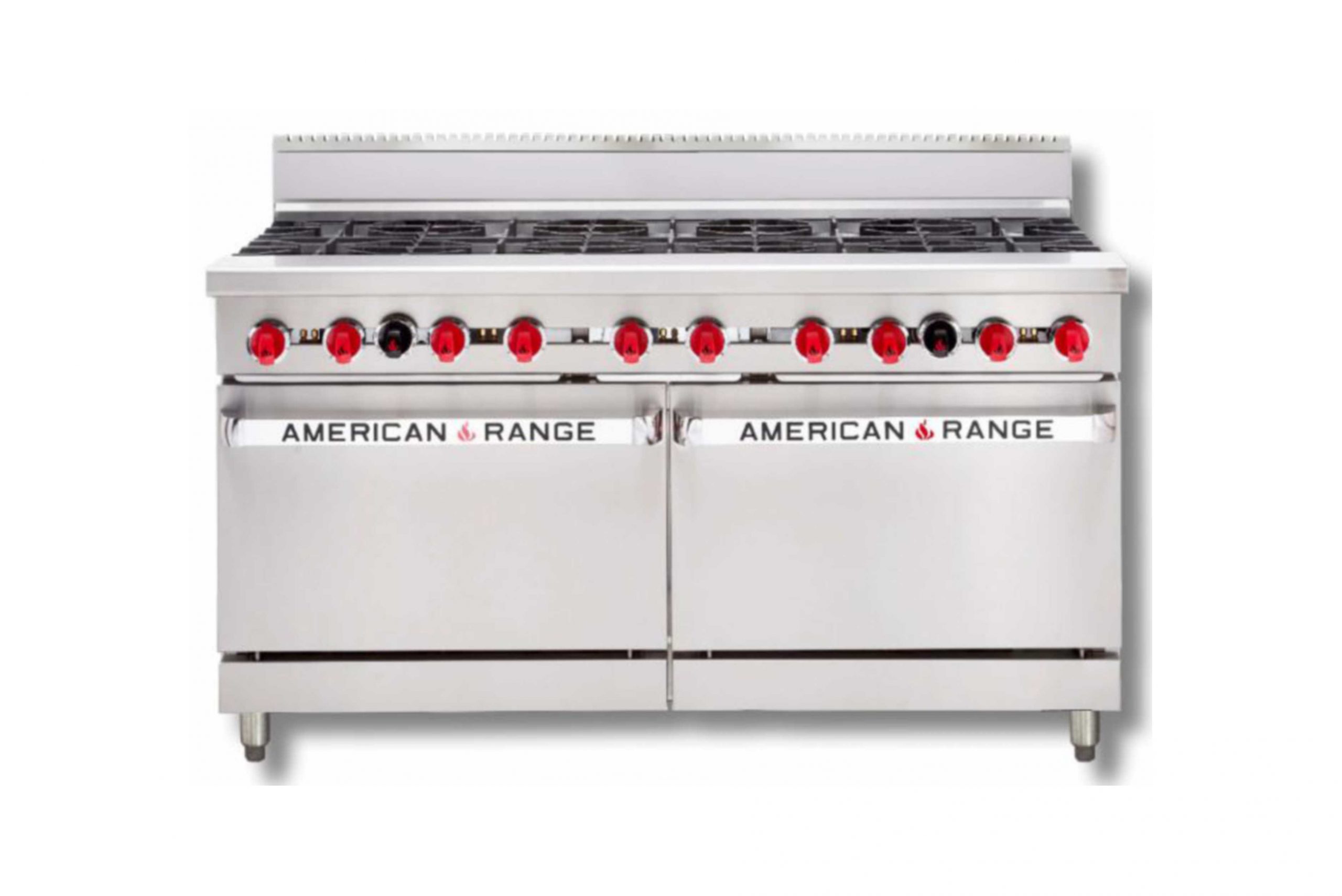

American Range 60″ Oven Range – AAR.10B
| Weight | 324 kg |
|---|---|
| Dimension |
Description
303mm open burners over double integrated static oven
All stainless steel front, sides, rear flue
Heavy gauge welded frame construction with heavy duty stainless steel landing ledge
Chrome plated steel legs
Removable stainless steel door for easy cleaning
Oven thermostat controls temperature from 70ºC – 260ºC
Two chrome plated oven racks in enamelled oven bottom, sides, back and door liner
Two piece, lift-off easy clean burners
Removable full width drip pan under open burners
Open burner – Manually lit, No pilot, with flame failure.
Simple – low maintenance
Oven burner – Piezo ignition with pilot
PRODUCT SPECIFICATIONS
Dimensions (W x D x H) : 1524 x 828 x 1137
Total Weight : 324 Kg
Burners : 10 x 26MJ/Hr burners
Oven : 2 x 25MJ/Hr | 667 x 572 x 337mm cavity
Minimum Supply Pressure : (NG)1.13 kPa | (ULPG)2.75 kPa
Operating Pressure : (NG)1.0 kPa | (ULPG)2.49 kPa
Total Gas Supply : (NG)310MJ/Hr | (ULPG)308MJ/Hr
